Balluff Inductive Sensors with Preinstalled Deutsch or AMP Superseal Connectors

The sensors are pre-installed with Deutsch or AMP connectors to help simplify machine builds for OEMs.

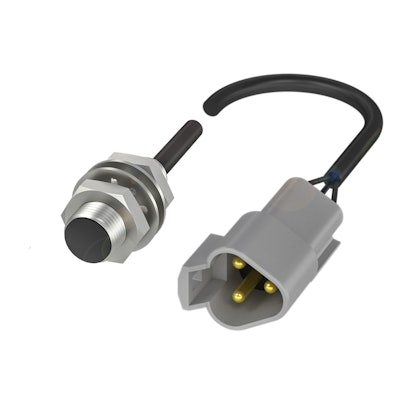

Bes05 Y9
Balluff Inc.

Balluff’s inductive sensors with preinstalled Deutsch or AMP Superseal connectors make vehicle construction easier and the final product more dependable and easier to maintain.

  • Product line includes 12 standard inductive proximity sensors
  • Available in three connector types — 3-pole Deutsch triangular connector, 4-pole Deutsch square connector and AMP Superseal 1.5 mm (0.06 in.) 3-pole flat connector
  • Different sizes and ranges available including M12 4 mm (0.16 in.) flush-mount; M18 8 mm (0.31 in.) flush-mount; M18 16 mm (0.63 in.) non-flush-mount; and M30 15 mm (0.59 in.) flush-mounts
  • Sealed for added protection
  • Features  IP67-rated connectors and thermoplastic polyurethane (TPU) cables for resistance to oil, grease and abrasion
  • Built to handle strenuous demands of off-highway mobile equipment
  • Deutsch and AMP connectors are quick to install and weather resistant

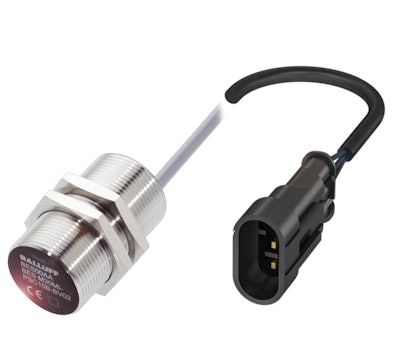

Bes05 YpBalluff Inc.
