Rotary position sensor

Rotarypositionsensor 10057310
Bei Sensors Logo Highres 10719595

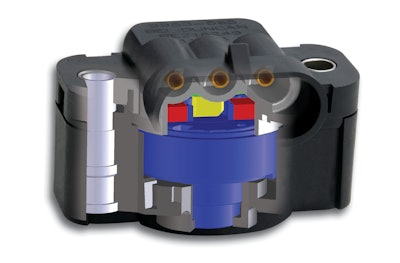

BEI Sensors, formerly BEI Duncan Electronics, offers the 9950 Non-Contacting Rotary Position Sensor. The new 9950 Sensor incorporates the proven performance characteristics of the company’s dual Hall effect sensors, including the durability of non-contacting technology and EMI capabilities, into a single analog output, lower-cost and more compact package. The result is a rugged, sealed device with a life expectancy of up to 35 million cycles that provides a solution for the harsh environments found in off-highway applications.

  • Integrated Hall effect chip enclosed in liquid tight, fully sealed plastic package meeting IP67
  • Temperature range of -40 to 257F
  • Can withstand 10Gs vibration
  • Mates to Packard Electric METRI-Pack 150.2 series
  • 50 x 37.5 x 34.1mm
