Eaton's 3-in-1 battery vent valve is the first to align with the new SAE J3277 standard designed to evaluate non-destructive water intrusion testing for Rechargeable Energy Storage Systems (RESS) used in electrified vehicles (EVs). Eaton’s 3-in-1 battery vent valve combines three critical functions—passive and active venting, a battery case leak-check mechanism and resealing technology—into a single solution.
As EV adoption accelerates globally, manufacturers face increasing pressure to enhance battery safety, improve reliability and streamline production. The SAE J3277 standard introduces a more precise, non-destructive method for assessing water intrusion resistance, replacing traditional destructive testing approaches such as IEC 60529’s IPX7 level. Unlike conventional venting solutions, Eaton’s 3-in-1 battery vent valve not only supports this new standard but also enhances overall battery performance by enabling real-time leak detection during assembly while providing critical overpressure relief.
The 3-in-1 battery vent valve integrates:
- Passive and active venting—Delivers overpressure relief to prevent catastrophic thermal runaway scenarios caused by cell failures.

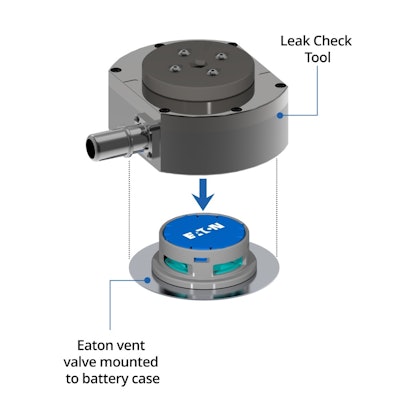

- Battery case leak-check mechanism—Supports high-precision, non-destructive leak testing during production, reducing complexity for manufacturers and ensuring long-term battery reliability.
- Advanced resealing technology—Allows for customizable low opening pressures, significantly improving safety compared to conventional burst-valve designs.
