Honeywell expands its magnetic position sensor product portfolio with the SS360NT/SS360ST/SS460S High Sensitivity Bipolar Latching Digital Hall-effect Sensor Integrated Circuits. Bipolar latching magnetics make these products well-suited for accurate speed sensing and revolutions-per-minute (RPM) measurement.
- Responds to low magnetic fields and offers consistent repeatability while providing fast response to change in magnetic field for enhanced motor efficiency
- Offers reliable switching points with high magnetic sensitivity of 30 G typical (55 G maximum) without using chopper stabilization on Hall element
- Provides clean output signal and fast latch response time
- Operates via magnetic field from a permanent magnet or an electromagnet
- Responds to alternating North and South poles
- Operates over full temperature range of -40 C to 150 C (-40 F to 302 F)

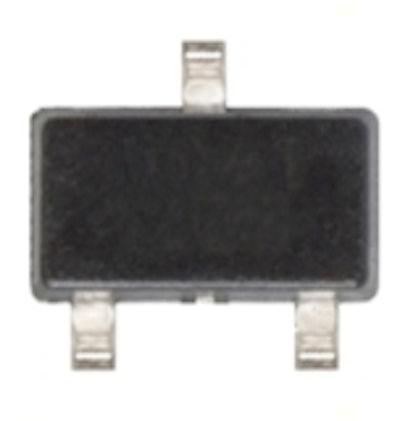

- Two package styles available: subminiature, SOT-23 surface mount package supplied on tape and reel, and small, leaded, flat TO-92-style package
- Offers a wide operating voltage range of 3 to 24V DC
- Built-in reverse voltage enhances protection of sensor and circuits
- RoHS-compliant materials meet Directive 2002/95/EC
