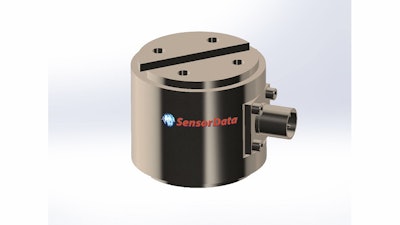

Model T120 Flange Reaction Torque Sensor

SensorData Technologies' Model T120 Flange Reaction Torque Sensor features high torsional stiffness for increases in overhung moments, weight and thrust.


SensorData Technologies has announced the global market introduction of its Model T120 Flange Reaction Torque Sensor.

  • Features high torsional stiffness and compact, lightweight design
  • Higher stiffness offers substantial increases in overhung moments, shear weight and maximum thrust
  • Measures 2 in. diameter, with overall length of 1.75 in. and total weight of less than 1 lb.
  • Reduced size and weight allows for added ease and flexibility of installation at either the driver, or absorber end, of the measurement chain
  • Available in five unique ranges (50, 100, 200, 500 and 1K lbs.-in.), with a typical rated output of 2 mV/V
  • Sensing transduction technology utilizes full bridge sensing element with integral temperature compensation, making possible tight zero and sensitivity shifts of only 0.002% of load/F
  • Non-linearity, hysteresis and overall accuracy specifications are 0.10% of rated output, with repeatability rated at 0.05% of output
  • Maximum load of 200% of rated torque capacity will not cause a permanent shift in performance characteristics
  • Recommended for use with external AC carrier or DC strain gage signal conditioning electronics, such as the SensorData i200
  • Can be calibrated together with customer-supplied electronics
  • Typical applications include high-accuracy non-rotating torque measurements of motors, pumps, compressors, tire braking, as well as a variety of twisting measurements
