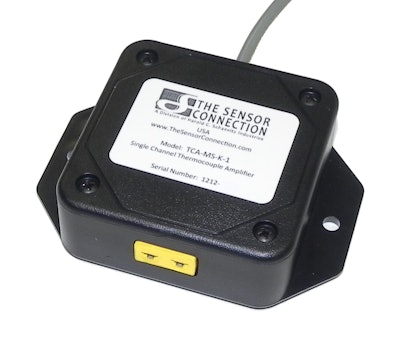

The Sensor Connection, a division of Harold G. Schaevitz Industries LLC, introduces the TCA-MS-K-1 Single Channel Type K Thermocouple Amplifier Module.
- Converts low output voltage signal from Type K thermocouple probe to a single independent linearized 0-5V DC output voltage
- Well suited for interfacing to instrumentation equipment including data loggers, temperature indicators, chart recorders and controllers
- Features fast dynamic response of 1 ms
- Temperature measuring range is 0-1,250 C (32-2,282 F)
- Analog output is 0-5V DC
- Supply voltage 10-32V DC
- Housing is rated IP51
- Compactly designed, measuring only 2.5 x 2.5 x 0.9 in. (6.35 x 6.32 x 2.29 cm)
- Includes mini-plug signal input connector and 1 m long integral signal cable
