Electrohydraulic Wireless CAN-bus

MICO has released a wireless CAN bus for its MOBEUS electrohydraulic braking system which uses a CAN-Bluetooth connection to interface with the brake system.

Mico Wirelesscan 10885233
New Mico Png 10724427

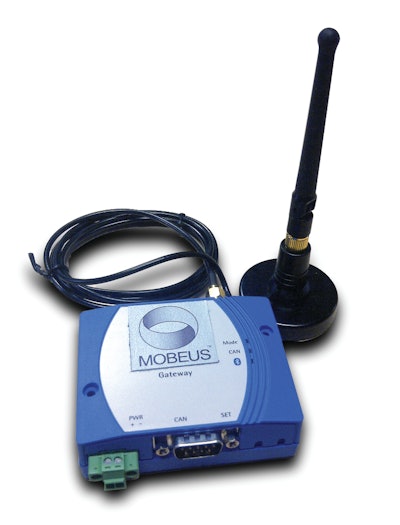

MICO Incorporated introduces a wireless CAN interface for MICO MOBEUS electrohydraulic braking systems. The MICO Electrohydraulic (EH) wireless CANbus interfaces with the MOBEUS ABS/TC/ESC ECU (Electronic Control Unit) utilizing a CAN-Bluetooth connection to the MOBEUS Service & Diagnostic Tool LINC.

  • Fully compatible with the SAE J1939 CAN Communication standard
  • Communicates with MICO MOBEUS LINC (Single Mode), as well as other vehicle controls utilizing the vehicle's CANbus (Bridge Mode)
  • Provides wireless access to CAN systems using the standard Bluetooth interface provided within many notebooks (single mode)
  • Offers up to 100 m transmission range (single mode) and up to 300 m in bridge mode
  • Includes CANbus data monitoring and data logging outside the vehicle during tuning and diagnostic
  • Compliant to Bluetooth specification V2.1 EDR
  • Features operating temperature range of -40 to 85 C
  • Receives power through vehicle battery power (9 to 30V DC) or independent 9V battery
