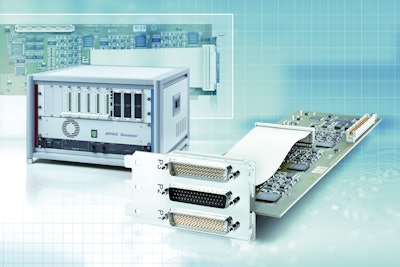

DS4004 HIL Digital I/O Board

The DS4004 HIL digital I/O board from dSPACE measures and generates digital I/O signals.

April 2, 2010
dSPACE
Ds4004hildigitalioboard 10058707
Dspace 10055308

The DS4004 HIL digital I/O board from dSPACE measures and generates digital I/O signals for hardware-in-the-loop simulations that test electronic control units (ECUs).

  • 96 I/O channels, freely configurable via software, with signal conditioning for automotive applications and TTL levels
  • Digital I/O channels can be used separately, as well as synchronized in 32-bit words
  • Works with systems with electrical system voltages of 12, 24, 36, and 42 volts, as well as for customary TTL levels
Request More Information
Fill out the form below to request more information about DS4004 HIL Digital I/O Board
