CVC600 Vehicle Controller

Compact size and robust operation enable lift truck manufacturers to gain space on automated lift trucks and AGVs, without compromising performance.

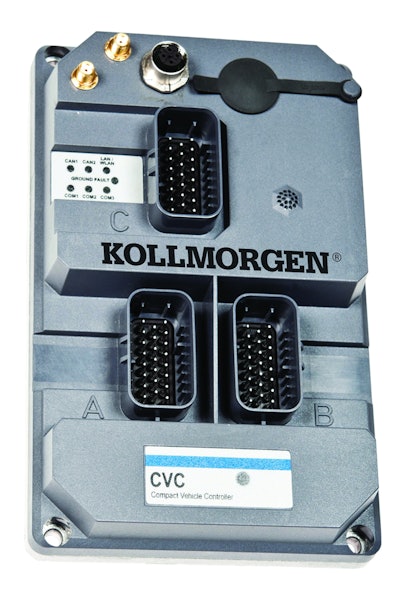

Kol530 Im 10210551

Kollmorgen introduces the CVC600 Vehicle Controller. Just 125 x 50 x 195 mm in size, CVC600 vehicle controllers can fit where other vehicle controllers can’t.

  • Rugged IP65-classified design that is immune to vibrations, unstable power supplies, temperature variations, humidity and dust
  • Ideal solution for automating standard lift trucks with limited space for add-ons that demand compact, robust and reliable vehicle control solutions
  • Supports 24 to 48v operations, with built-in under voltage, over voltage and reverse polarity protection
  • Energy efficient, consuming a maximum of 5 W of power
  • Rated for use in temperatures ranging from -20 to 55 C
  • Based on industry-standard technology that can handle any vehicle type, wheel configuration and navigation technology, including laser, spot, range, EyeWay, magnetic tape or inductive wire
  • Offers support for WLAN, LAN, CAN, RS232/422/485 communication

The CVC600 is part of a complete, open-architecture AGV controls platform from Kollmorgen that includes all the software, hardware and services needed for successful vehicle automation. The platform is application-independent, scalable and easy to integrate with host systems and material handling systems. The result is lower total costs for warehouse operations and their customers.
