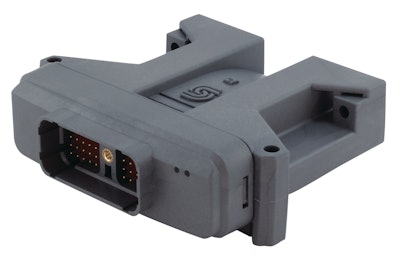

MC038-010 and MC050-055 Microcontrollers

Sauer-Danfoss Inc. releases its MC038-010 and MC050-055 microcontrollers to expand the range of control functions and design options available to OEM designers for off-road vehicles.

• Part of PLUS+1 family of mobile machine management products
• MC038-010: 38-pin controller; 15 inputs and 13 outputs, including 6 and 10 amp outputs; suitable for night lighting, control of variable speed DC electric motors and high current solenoids; first PLUS+1 controller to feature a "sleep mode"
• MC050-055: features 36 input pins, three Controller Area Network (CAN) ports, three output pins and three levels of sensor power supply; facilitates CAN bus system capabilities and data management between multiple CAN bus systems
• Both: IP67 enclosure; EMI immunity extends to 100 volts/meter
