MD2 Digital Amplifier And Controller Module

Designed for mobile applications, Wandfluh's MD2 digital amplifier and controller performs under extreme conditions.

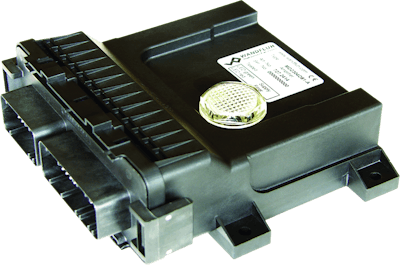

Pr054 10269700
Wandfluh Logo 10933194

The digital amplifier and controller module MD2 has been especially developed for actuating hydraulic valves under extreme ambient conditions. Wherever moisture, vibrations, higher temperatures or fluctuating supply voltages occur, the application of this module is appropriate.

  • Provides simple installation and commissioning without special programming knowledge

  • Features robust and compact design

  • Available as a pure amplifier, for actuating proportional and switching valves, or in combination with controller functions

  • Controller functions include pressure, volume flow or position

  • Allows use with CANopen interface
  • Includes digital inputs and outputs as well as powerful PWM outputs for operating solenoid valves
  • Digital inputs process frequency or PWM signals
  • Up to four analogue inputs with a maximum resolution of 16Bit are available
  • PASO software enables easy set-up and process data analysis
  • Utilizes USB connection
  • Adjustable via PC
  • Stores parameter settings
  • Features explosion protection class IP67
  • Working temperature range of -40 C to 85 C
