Power Distribution Module Vehicle Control System

Murphy has expanded its line of integrated vehicle control options by developing the Power Distribution Module.

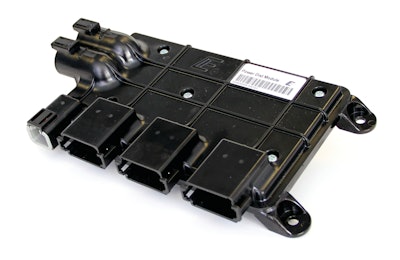

Pdmfl 10323348
Murphy20logotag Jpg 2012 10716165

Murphy has expanded its complete integration approach to both off-highway and on-highway vehicles with the introduction of the high-current I/O module, the Power Distribution Module (PDM).

  • Gives users a simpler way to integrate multiple loads, switches and sensors into a control system
  • Combines with full range of PowerView displays
  • Allows users to monitor up to 20 inputs and control 12 high-current switching outputs
  • Retrieves data from inputs – i.e. sensors, toggles, joysticks – and transmits information to be shown on operator display via CAN J1939 network
  • Handles basic logic functions as a standalone product and capable of complex logic programming in conjunction with a display or controller
  • Display or external controller can send commands to control corresponding outputs
  • 12 high-current outputs provide more power to support high-current loads, such as automation of hydraulic control systems and lighting circuits
  • Directly switches various loads, such as coils and motors and users can remotely monitor and configure inputs and outputs
  • I/O capabilities help users integrate enhanced diagnostics into vehicle control system
  • Integrating a wide range of sensors provides comprehensive view of vehicle functions which can help diagnose potential equipment malfunctions
  • For use in 12V systems and will be available for 24V systems
  • Fully-sealed enclosure protects against moisture ingress and completely eliminates need for both fuses and relays, simplifying wire harness construction
  • Provides current and EMF feedback for actuator protection and accuracy
  • Features operating temperature of -40 C to 85 C (-40 F to 185 F)
  • Includes internally potted and sealed circuit board and sealed Deutsch connectors for improved durability and reliability
