Positional Valve Driver

Axiomatic Technologies and G.W. Lisk introduce their Positional Valve Driver which is fully CAN controlled.

Gwl171100 300dpi 10726570
Axiomatic Logo 2019

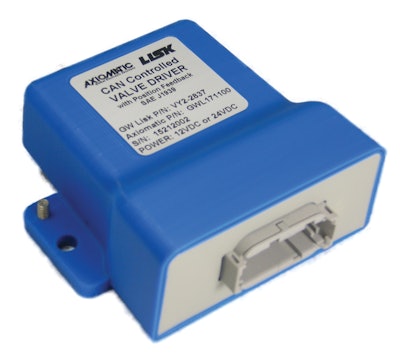

Axiomatic Technologies Corp. and the G.W. Lisk Company have collaborated to release a controller with high temperature capability. The CAN Controlled Valve Driver with Position Feedback, or the Positional Valve Driver (PVD), is a rugged high-performance, closed loop valve driver intended for use directly under the hood in a wide range of mobile applications.

  • Main application is control of closed loop engine actuators
  • Capable of driving a hydraulic positional actuator accurately to achieve any hydraulic positioning goals
  • Includes one configurable universal input (0-1V, 0-2.5V, 0-5V, 0-10V, 0-20mA, 4-20mA, PWM, Frequency or Digital), and one proportional current output (0-4A)
  • Supports CAN J1939 protocols
  • Can also send operational status and/or positional information back to network
  • Features aluminum enclosure, gasket and 12 pin Deutsch IPD DTM15-12PA connectoror for use in rugged applications
  • Includes IP67 rating
  • Configurable using Axiomatic Electronic Assistant service tool
  • Axiomatic part number is GWL171100, and G.W. Lisk part number is VY2-2837
