BLST Series Remote HID Ballast

The BLST Series remote HID ballast from Phoenix is hazard rated and designed for use with various heavy-duty HID light fixtures.

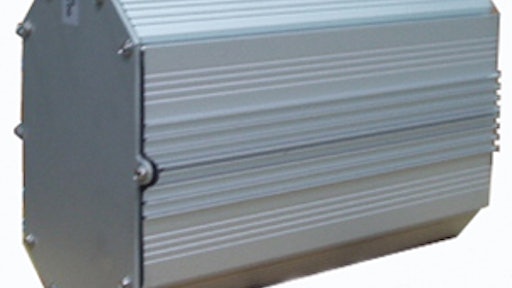

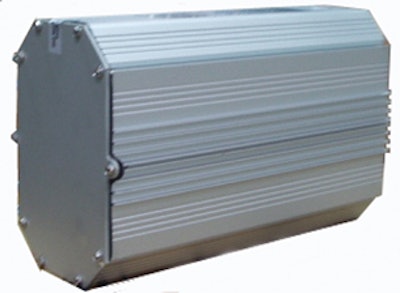

Ballast Mod 10830141

The Phoenix BLST Series is an indoor/outdoor hazardous rated, weatherproof high intensity discharge (HID) remote ballast used in conjunction with a variety of heavy-duty Phoenix HID light fixtures.

  • Housing is made from extruded marine-grade, low-copper content aluminum alloy for resistance to corrosion
  • Exposed hardware is stainless steel to further protect against corrosion
  • Components are mounted in insulated chambers for increased heat dissipation
  • Housing is sealed and protected against moisture and debris with EPDM gaskets on end caps and neoprene o-ring gaskets on cap screws
  • Available lamp types include high pressure sodium (200 to 1,000W), metal halide (150/175 to 1,500W), pulse start metal halide (400 to 1,000W), CSI metal halide (1,000W) and mercury vapor (400 to 1,000W)
  • Standard minimum starting temperature is -40 F (-40 C) for high pressure sodium lamp type
  • Units available in dual volt (120/277V; 60 Hz), quad volt (120/208/240/277V; 60 Hz), triple voltage (120/277/347V; 60 Hz for use in Canada) and 480V; 60 Hz
  • Some models available in other voltages and in 50 Hz
  • Can be directly mounted to surface with 1/2 in. hex (1.27 cm) bolts on housing channel or with supplied adjustable brackets to fit a variety of surfaces
  • Enclosure measures 12 in. Long x 7.5 in. Wide x 5.6 in. Deep (30 cm x 19 cm x 14 cm)
  • Dual ballast options available
