VCM Solid State Timer Relay Module

Waytek's Vehicle Control Modules (VCM) are solid state timer relay modules featuring standard automotive relay terminal formats.

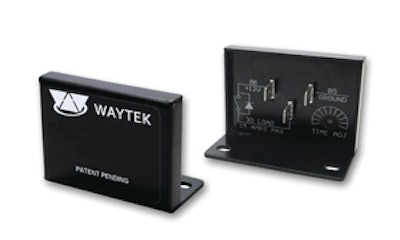

Waytek Vehiclecontrolmodule 10980505
Watk 21 Stacked Logo 10 5 21 White Background

Waytek has added Vehicle Control Modules (VCM) to an expanding line of solid state timer relay modules.

  • Solid state timer relay module with a standard automotive relay terminal format
  • Includes no moving parts to wear out
  • Withstands rugged environments of trucks, trailers, emergency and heavy-duty mobile equipment
  • Comes with two inputs, one activated by a transition to 12V (Input A), and one activated by a transition to ground (Input B)
  • Two inputs operate as a logical exclusive, or so that either input can operate the timer
  • Output is operated when +12V is applied to Input A while Input B is off, or when ground is applied to Input B while Input A is off
  • Timer starts when the input signal is removed
  • When timer expires, output is turned off and the operation is complete
  • Fixed and adjustable time settings are available
  • Adjustable time values are set using a single turn potentionmeter
  • Features compact size with panel mount brackets to offer space and weight savings
