F02 Pressure Transmitter

STW introduces the F02 pressure transmitter, designed to meet the new 2006/42/EG machinery guidelines.

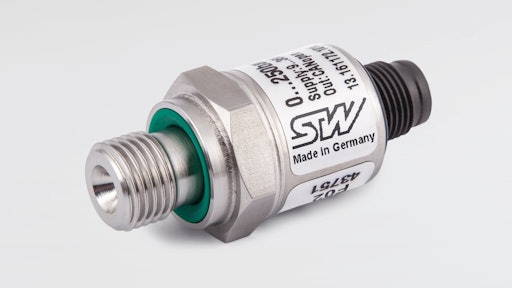

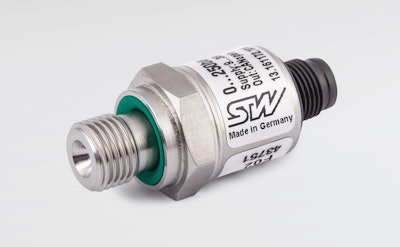

Stw F02 Cmyk 11272800

In order to comply with the highly complex requirements of the new 2006/42/EG machinery guidelines, Sensor-Technik Wiedemann GmbH (STW) has developed the F02 pressure transmitter.

  • Possesses necessary properties required by the EN ISO 13849-1 and IEC 61508 standards for the compliance of functional safety
  • Well suited for use in systems requiring PLd Performance Level or a Safety Integrity Level of SIL2
  • Protects against external influences such as vibrations, EMC and thermal stress loads
  • Features thin-film measurement cell welded to pressure adapter
  • Compatible with wide range of media
  • Displays high level of mechanical stability
  • Available in pressure ranges of 10 to 1,000 bar
  • Output signal is present on two outputs in parallel, though the second output presents an inverted signal
  • Users are able to choose between a ratiometric and 4-20 mA output using three wires
  • Maximum allowable media temperature range is -40 to 150 C
  • Overall error is better than 1% FS in the compensated range of 0 to 80 C
  • Electric contact is ensured via a 5-pin M12 plug
  • Transmitter naturally possesses E1 accreditation for its areas of application
