AX181000 Thermocouple and Analog Signal Input to CAN Controller

The Thermocouple and Analog Signal Input to CAN Controller from Axiomatic adds flexibility to its line of rugged I/O controllers for engine and power generator set control systems.

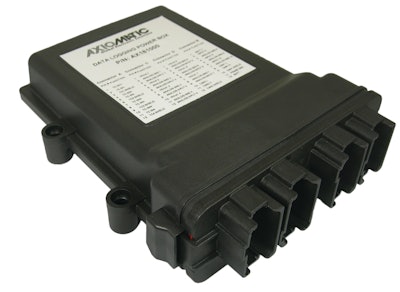

Ax181000 300dpi 11347653

The Thermocouple and Analog Signal Input to CAN Controller from Axiomatic adds flexibility to its line of rugged I/O controllers for engine and power generator set control systems.

  • Simulink block libraries allow OEM designers to program the device for specific applications
  • TC/Analog Inputs to CAN Controller receives inputs from engine coolant, fuel and differential pressure sensors, engine temperature sensors, thermistors as well as thermocouples
  • Networked to a SAE J1939-based control system
  • Seven +5V references (10 mA) are provided to power the sensors
  • Two CAN bus ports are isolated from signal inputs and thermocouple inputs
  • Using the Electronic Assistant programming tool, the user can select the desired inputs from the following signal options: 4 Thermocouples (Type J, K or T); 7 Analog Voltage Signals (0-5V, 0-10V); 3 Analog Signal Inputs (0-5V, Thermistor)
  • A rugged power supply interface accepts 12V DC, 24V DC or 48V DC nominal for battery powered machine applications
  • Rated IP67
  • Rugged enclosure with four 12-pin Deutsch IPD connectors is suitable for diesel engine environments
  • Operates from -40 to 85 C (-40 to 185 F)
