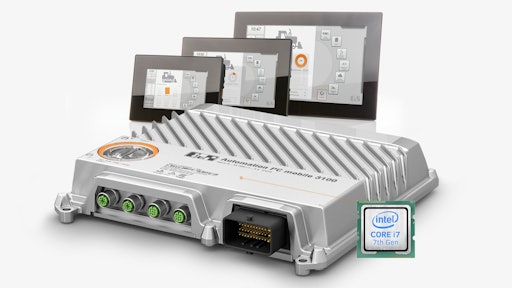

The Automation PC mobile 3100 from B&R is a powerful PC with an Intel Core i processor which suits use in mobile machines.
- Offers IP69K protection
- Robust construction and resistant to shock, vibration, salt, UV light and oil
- Specially designed for use in harsh environments
- High performance makes it optimally suited for smart machines that communicate with each other and with the cloud
- Features 7th-generation Core i processor from Intel
- Performance can be scaled from a 2.2 GHz Celeron processor to a 2.8 GHz Core i7
- Offers up to 16 GB RAM and 480 GB of flash memory
- Equipped with a TPM module
- Supports standard operating systems like Windows 10 IoT Enterprise and Linux
- Computing performance enables implementation of semi- or fully-autonomous machine functions
- Completely sealed housing and fanless
- Specially developed temperature management system allows operation from -40-85 C (-40-185 F) surface temperature
- Two ports each for USB and Fast Ethernet, as well as two slots for PCIe option boards
- Insensitive to voltage fluctuations
- Standard voltage range from 9-32V
- Includes integrated load dump protection which compensates for peaks in supply voltage to protect electronics and ensure uninterrupted operation
- Two internal slots allow modular expansion with additional communication interfaces
Fill out the form below to request more information about B&R Automation PC Mobile 3100
