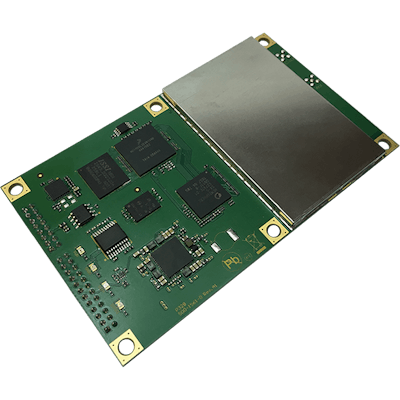

Hemisphere GNSS Eclipse P328 OEM Positioning Board

The Eclipse P328 OEM positioning board from Hemisphere GNSS is an all signals receiver board which provides centimeter-level accuracy.

600600p522 Ed Nmain P328 58405db116b9b

Hemisphere GNSS announces the Eclipse P328, the next offering in a line of low-power, high-precision positioning OEM boards.

  • Multi-frequency, multi-GNSS capable
  • Integrates Atlas GNSS Global Corrections
  • Features new hardware platform which reduces overall cost, size, weight, and power consumption
  • Offers true scalability with centimeter-level accuracy in either single frequency mode or full performance multi-frequency, multi-GNSS, Atlas-capable mode
  • Supports fast RTK initialization times over long distances
  • Measures 60 mm x 100 mm (2.4 in. x 3.9 in.)
  • Includes 24-pin and 16-pin headers
  • Enables simultaneous tracking of all satellite signals including GPS, GLONASS P-code, BeiDou, Galileo, and QZSS
  • Updated power management system efficiently governs processor, memory and ASIC
  • Supports Serial, USB (On-The-Go with future firmware upgrade), CAN, and Ethernet for ease of use and integration
  • Optional output rates of up to 50 Hz are also supported
  • Powered by Athena GNSS engine
  • Athena performs with long baselines, in open-sky environments, under heavy canopy, and in geographic locations experiencing significant scintillation
  • SureFix advanced processor and Athena work together to deliver high-fidelity RTK quality information resulting in guaranteed precision with virtually 100% reliability
  • Integrated L-band adds support for Atlas GNSS global corrections for meter- to sub decimeter-level accuracy
  • Tracer technology helps maintain position during correction signal outages
  • Uses RTK technology, powered by Atlas, which allows operation with RTK accuracies when RTK corrections fail
  • If Atlas-subscribed, will continue to operate at subscribed service level until RTK is restored
  • Well suited for land or marine survey, machine control, and any application where high-accuracy positioning is required
