Hemisphere GNSS Vector Eclipse H328 Positioning and Heading OEM Board

The Hemisphere GNSS Vector Eclipse H328 positioning and heading board provides simultaneous tracking of all satellite signals including GPS, GLONASS, Galileo, and more.

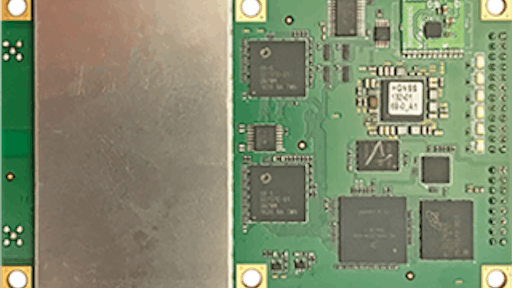

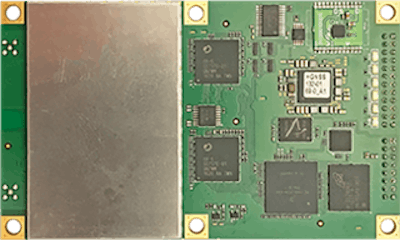

H328 5953f03115c56

Hemisphere GNSS announces the release of the Vector Eclipse H328, the next offering in a line of refreshed, low-power, high-precision, positioning and heading OEM boards.

  • Multi-frequency, multi-GNSS
  • All signals receiver board
  • Includes Hemisphere’s new and innovative hardware platform, and integrates Atlas GNSS Global Correction Service
  • New hardware platform reduces overall cost, size, weight, and power consumption
  • Offers true scalability
  • Centimeter-level accuracy in either single-frequency mode or full performance multi-frequency, multi-GNSS, Atlas-capable mode that supports fast RTK initialization times over long distances
  • Features fast accuracy heading of better than 0.17 degrees at 0.5 m antenna separation, and aiding gyroscope and tilt sensors for temporary GNSS outages
  • Measures 60 mm x 100 mm (2.36 in. x 3.94 in.)
  • Includes 24-pin and 16-pin headers for drop-in upgrade of existing designs
  • Provides simultaneous tracking of all satellite signals including GPS, GLONASS P-code, BeiDou, Galileo, and QZSS
  • Updated power management system efficiently governs processor, memory, and ASIC
  • Offers flexible and reliable connectivity by supporting Serial, USB (On-The-Go with future firmware upgrade), CAN, Ethernet, and SPI for ease-of-use and integration
  • Optional output rates of up to 50 Hz are also supported
  • Outstanding Capabilities
  • Powered by Athena GNSS engine which excels in virtually every environment where high-accuracy GNSS receivers can be used
  • Integrated L-band adds support for Atlas GNSS global corrections for meter to sub decimeter-level accuracy
  • Tracer technology helps maintain position during correction signal outages
  • Uses Hemisphere’s aRTK technology, powered by Atlas, enabling operation with RTK accuracies when RTK corrections fail
  • Well suited for robotics, autonomous vehicles, antenna pointing, marine survey, machine control, and any application where high-accuracy positioning and heading is required
