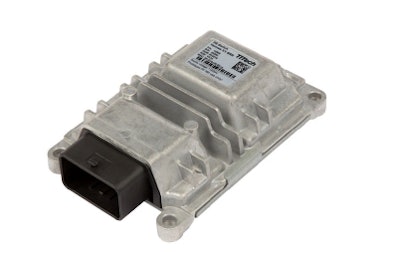

The DESwitch Hermes 3/1 BRR from TT Tech enables the evaluation of in-vehicle network requirements for diagnostics, control applications, infotainment and advanced driver assistance systems (ADAS).
- Provides standard interfaces like CAN and FlexRay as well as digital and analog I/Os for customized evaluation projects
- Features 3 x BroadR-Reach physical layer interfaces that enable 100 Mbit/s full-duplex communication over unshielded twisted single pair (UTSP) cabling in addition to 1 x 100/1000Base-Tx port
- Supports multiple traffic classes converged on one Deterministic Ethernet network
- Standard Ethernet for best effort traffic
- Quality of Service (QoS) for using VLANs and priorities
- Audio-Video Bridging (AVB) for clock synchronization and traffic shaping
- Time-Sensitive Networking (TSN) for time-aware shaping
- Time-Triggered Ethernet for fault-tolerant clock synchronization
- Enables convergence of critical and non-critical application data streams on one network
- Can be deployed to show full potential for next generation of Ethernet-based domain architectures using Deterministic Ethernet
- Applications include automotive, buses and trucks, agricultural and other off-highway equipment
