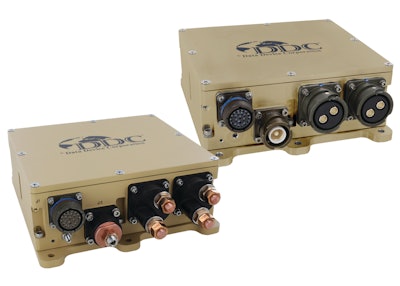

RP-20S1X Power Distribution Units

Data Device Corp.'s RP-20S1X Power Distribution Unit features a 300 Amp total current capacity.

Rp 20s1x 10815368
Ddclogo S 10168276

Data Device Corporation (DDC) introduces its first Power Distribution Units (PDUs) in the RP-20S1X family of stackable, configurable devices for 28V DC systems.

  • High Power Solid-State Power Controllers (SSPCs) provide four independent 75 Amp load channels (300 Amp total current capability)
  • Distributes and controls power to four independent subsystems
  • Offers channel paralleling for high current loads
  • Features independent remote control of individual channels and groups
  • Available with MIL-DTL-38999 connectors or power stud interfaces
  • Tested to IP-67, MIL-STD-1275D, MIL-STD-461E, and MIL-STD-810F
  • Provides reliable solid-state high current load control
  • Includes remote control via J1939 CANbus or RS-485
  • Offers diagnostic and prognostic data (voltage, current and temperature)
  • Automated power control simplifies crew operation
  • Provides improved mission safety and reduced life-cycle cost
  • SSPCs provide intelligent power management advantages such as accurate over-current protection, programmability, load monitoring, and network control
  • SSPCs provide size, weight and power (SWaP) savings, with higher reliability and longer life compared to electromechanical circuit breakers and relays
