Real movers and shakers

In the global industry of oil and gas exploration, land seismic acquisition utilizing advanced vibroseis technology ensures higher quality data collection in extreme environments.

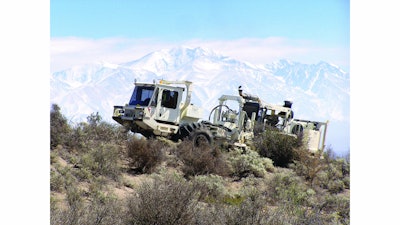

The global nature of the oil and gas industry means seismic vibrator vehicles may be operated in challenging mountainous terrain.
The global nature of the oil and gas industry means seismic vibrator vehicles may be operated in challenging mountainous terrain.

EXTREME MACHINES!

This new section in OEM Off-Highway magazine was created in order to showcase unique vehicles and the innovative engineering and systems that allow them to perform in extreme climates, terrains or operational conditions. Have an extreme machine you want to submit for consideration? Send it to editor@oemoffhighway.com.

------------------------------------------------------------

The oil and gas industry is one of the world’s largest industries. The upstream segment of the industry refers to the exploration and exploratory drilling of natural resources on land or offshore. INOVA Geophysical, a seismic equipment manufacturer (INOVA), facilitates land data acquisition by supplying seismic equipment to oil and gas exploration companies and geophysical service providers to image the subsurface of potential drilling locations.

Accurate mapping of an area’s subsurface helps companies determine whether to invest in drilling operations in a particular sector of the world. “Because of the large financial investment required to commence drilling operations, oil and gas companies want a high probability of return on this investment,” says Alex Gorosito, Senior Director of Source Products Engineering, INOVA.

As oil and gas reserves become deeper and harder to access, geophysicists need the seismic vibrator to shake at lower frequencies, which places increased demand and abuse on the vehicle. According to the technical paper, Geophysical benefits from an improved seismic vibrator1, there are several reasons to achieve lower frequencies besides imaging deeper reservoirs, including “improving the accuracy of the seismic inversion to the acoustic impedance process and enabling waveform inversion for velocity model determination or refinement.”

Conventional vibrator vehicles were constrained mechanically and hydraulically, making it difficult to put sufficient force-energy into the ground when using frequencies lower than approximately 8 Hz. A slow transient response of the pump at low frequencies can introduce supply pressure ripples into the hydraulic system which can, in return, limit vibrator force output. Accumulators provide additional fluid to offset pressure ripples and reduce harmonic distortion; over the years, the supply lines were shortened and accumulator design was improved for increased effectiveness.

The deeper into the ground a signal is sent, the more faded the signal becomes (proportional to the distance) and harmonic noise tends to phase out the signal. “The cleaner you can input the signal into the ground, the better chance you have to image those deep targets beneath the surface,” Gorosito says.

Geophysicists always want to input the same quantity of energy into the ground and keep that source signal’s signature consistent over time to make land evaluations and data processing easier. “Geophysicists are looking for significant amplitude variations from the returning source signal. If those variations are present, interpretation of that seismic data may lead oil and gas companies to take the next step in exploration in that region,” he explains. For that reason, INOVA has spent a lot of development time in improving the amount of force-energy being delivered and keeping the source signature consistent over time and over variable terrains.

“In order to do any type of subsurface exploration, you need to be able to generate enough energy into the ground and record it accurately as it comes back up to the surface,” Gorosito says. “We’re always looking to improve the efficiency of the force signal that we’re generating, as well as the signal’s repeatability.”

INOVA’s AHV Series vibrators have been used around the world for over 40 years and gone through several generations of vehicle design updates over the years. “Our hydraulic actuation system—which provides the source signal—has been redesigned throughout the years, while the vehicle frame has remained relatively unchanged,” he says. A stiffer baseplate design also assists in reducing harmonic distortion from the source signal.

The amount of force generated by the vehicle varies based on ground conditions, the accessibility of the location, and the amount of hold-down weight. The actual vehicle itself serves as a hold-down weight for the baseplate, which serves as a medium for energy transfer into the ground. INOVA’s AHV-IV seismic vibrator models have a gross vehicle weight range of 61,800 to 80,000 lbs., which also serve as barometers for their peak force capabilities.

Because of the sheer weight of the vehicle, the frame must be extremely durable in order for it to act as a hold-down weight for the baseplate. “Its mild steel, articulated frame also makes the vehicle very maneuverable in difficult terrains,” says Gorosito.

The global nature of the oil and gas industry means the vehicle can be operated in diverse climates ranging from the Russian arctic to the sub-Saharan desert and challenging terrains from the Australian outback to the rugged mountainous regions of North and South America. The vehicle’s flexible design supports different options such as tracks and several types of tires to operate in various environmental conditions.

Temperature extremes are handled through a few add-on components to protect various systems for consistent and optimal vehicle performance. For the severe cold in arctic climates, a safety hatch allows the operator to escape the cab should the heavy vehicle fall through the ice. The engine and hydraulic lines are covered by a winterized doghouse to maintain heat. A simple belly pan enclosure is also offered to help keep fluids warm. “Both snow and ice can stick to the baseplate surface which can affect operational efficiency and signal quality. We provide a urethane cover for the baseplate to act as a non-stick barrier between the plate and the surface,” says Gorosito.

Seismic vibrators are also used in other extreme environments such as deserts. “Two of the biggest challenges in desert conditions are maneuvering through sand and maintaining adequate comfort levels for the operator. The operator is in the cab for 8-12 hours at a time and can face ambient temperatures of up to 120 F in some areas, so a comfortable cab is essential for safe and efficient vehicle operation,” Gorosito says.

Operator comfort in regards to vibration is not an issue, as Gorosito explains that the hydraulic actuation system is almost completely isolated from the vehicle, and the oscillations between the frame and the vibrating mass assembly are minimal.

Currently, INOVA engineers are in the process of completely redesigning the cab to implement more ergonomic considerations, integrate state-of-the-art electronics and incorporate a ROPS structure into the design itself. “We are also looking at improving the performance of the engine and providing a seismic vibrator that will meet the upcoming Tier 4 EPA regulations,” Gorosito concludes.



1 Wei, Z., Hall, M. A. and Phillips, T. F. (2012), Geophysical benefits from an improved seismic vibrator. Geophysical Prospecting, 60: 466–479. doi: 10.1111/j.1365-2478.2011.01008.x
