Sun Hydraulics CANpoint XMD Configuration Software

The CANpoint software allows XMD mobile drivers to be configured quickly and easily over CANbus using a computer.

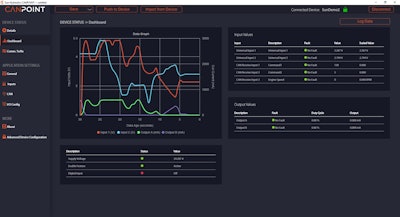

Dashboard Hi Res

Sun Hydraulics announces the release of the CANpoint XMD Configuration Software, available as a free download from its website.

  • Expands the capabilities of XMD mobile drivers, allowing them to be configured quickly and easily over CANbus using a computer
  • Enables users to easily implement open-loop, closed-loop (PID) and hydraulic fan drive control using pre-programmed modes
  • Provides clear, simple software interface that allows for point-and-click output shaping with excellent resolution and predictable results
  • Requires no programming to go from connecting to configuring to completing the application setup
  • All users need is Sun’s XMD CAN-to-USB hardware interface cable to connect the driver to a computer.
  • Includes live graphing with data logging , live CAN data traffic view, and multiple input types (voltage, current, PWM, frequency, resistive, digital)
  • Provides scalable input values and multi-point calibration
  • Simplified output settings
  • Password-protected systems settings
  • Dashboard lets users view inputs and outputs in real time and store results for post-data analysis
  • Users can see everything needed to evaluate application and optimize the results. including real-time plotting, data logging for post-analysis, real-time view of inputs and outputs, data in raw and scaled values and diagnostic indicators with descriptions
  • Helps users make most of the multiple input types XMD driver accommodates
  • Provides simple output menu for most common solutions and end-use cases with PWM frequency, output mode and ramp settings
  • Advanced options offer more control for experienced users, with output current regulation PID settings and robust fault detection that includes user-defined fault status modes
  • Open-loop mode offers customizable input/output settings, user-defined input variables for each output, additional points for custom output shaping and thermostat on/off feature for high- and low-pressure and flow-control applications
  • Closed-loop PID mode provides additional functionality using the two PID loops
  • Controls unidirectional or bidirectional hydraulic fan drives using up to five configurable inputs not limited to temperature. Inputs available include two universal and three CAN values
