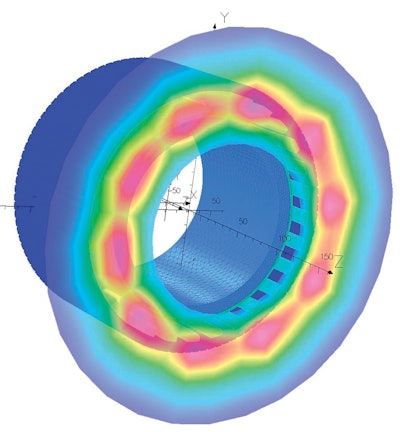

Following initial performance analysis in 2-D, Opera 3-D can be used to investigate end-effects to minimize interaction with a flywheel's housing.
The Opera electromagnetic finite element analysis (FEA) tool from Cobham Technical Services helps to accelerate commercial development of new technologies.
- Provides speed and flexibility
- Features scripting flexibility for automating design investigations and ease of interfacing to other software tools
- Allows three dimensional (3D) version of Opera to initially configure a model and derive data in order to further accelerate analysis
- Less computationally intensive 2D version is typically used for the bulk of simulation tasks
- Each non-linear 2D simulation run typically takes less than 30 minutes, with overnight batch processing further helping to shorten the process
- Solutions that meet specific criteria in the design space are then modeled and simulated using Opera 3D, to fine-tune performance and provide detailed confirmation of results
- Near seamless mesh control capabilities require minimal input and allow any angular alignment of rotating and stationary parts to be considered
- Command script files help with accurate evaluation of design parameters
