1200 Series Four- and Six-Cylinder Engines

Perkins’ 1200 Series meets Tier 4 interim regulations.

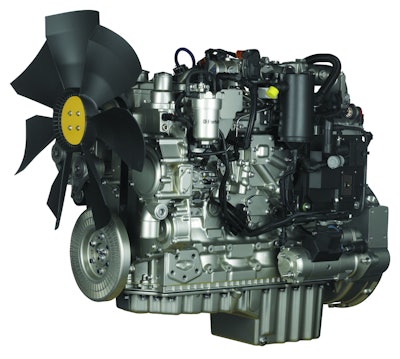

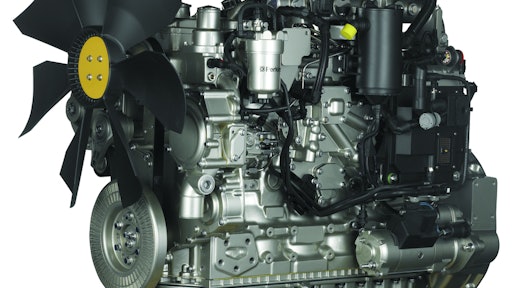

1206ee70tta View1 10252502
Perkinslo 10108214

The 1200 Series range is the latest generation of four- and six-cylinder engines from Perkins compliant with Tier 4i.

  • Range starts at 60 kW (88 hp) and tops out at 225 kW (300 hp)
  • For medium to heavy duty construction applications and mid-horsepower tractors in agricultural sector
  • Four engine models available
  • Delivers 23% more power and 35% more torque compared to Tier 3 models
  • Improves fuel consumption by 8%
  • Up to 110 kW (149 hp), the single turbo delivers response and torque at low speeds
  • Above 110 kW turbochargers work in unison with smaller first stage turbo accelerating quickly while larger second stage provides high airflow
  • Provides flexibility compact package size, multiple engine configurations and ability to mount aftertreatment in various locations
  • For high power applications above 130 kW (176 hp) aftertreatment uses high temperature regeneration, burning soot in diesel particulate filter with no impact on duty cycle
  • High temperature regeneration runs up to 5,000 hours before de-ashing
  • Applications below 130 kW (176 hp) have aftertreatment using low temperature regeneration with no impact on duty cycle
  • Hydraulic tappets, multi-vee belts and single side access reduce service costs
