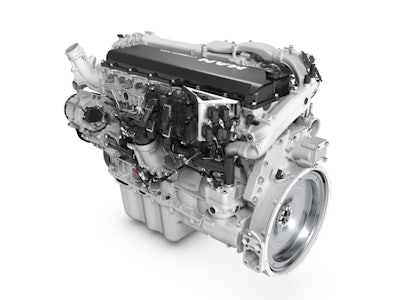

MAN D2676 LE13x 6-Cylinder Engine

MAN D2676 LE131 Tier4f 3 56f48260b8cf9

The D2676 LE13x in-line 6-cylinder Tier 4 Final engine made by MAN features high flexibility in a wide range of applications.

  • Meets Tier 4 Final without additional components such as a diesel oxidation catalyst (DOC) or a diesel particulate filter (DPF)
  • Power rating range from 400 to 520 hp (294 to 382 kW) at 1,950 rpm
  • Available in four ratings: 400 hp, 440 hp, 480 hp, 520 hp (294 kW, 324 kW, 353 kW, 382 kW)
  • Cylinder bore of 126 mm and a stroke of 166 mm
  • Develops its maximum torque of 1,875 to 2,400 Nm from a cubic capacity of 12.4 liters
  • Downgraded variants for countries with less strict exhaust-gas regulations will also be available
  • In the modular exhaust-gas aftertreatment system, extremely different installation variants can be devised thanks to variable positioning of individual components of the SCR catalyst
  • Compact dimensions of 1,376 x 925 x 1,288 mm (L x W x H)
