Isuzu Dual-Fuel 4HV1 Engines

The dual-fuel 4HV1 engines and power units can operate on natural gas or liquid propane depending on the fuel source available without reconfiguring the base engine.

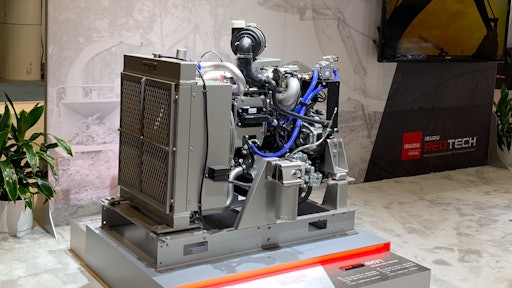

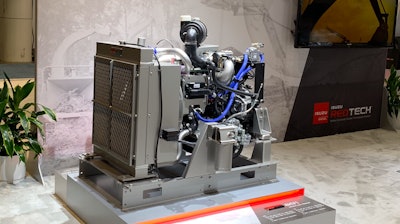

Isuzu Dual Fuel Engineat Conexpo
Isuzuindustrialdiesellogo 10948681

Isuzu introduces its first dual-fuel 4HV1 engines and power units in the alternative fuels market to easily transition fuel choices on the job site.

  • Operates on natural gas or liquid propane depending on the fuel source available without having to reconfigure the base engine
  • Simply requires sending a signal to the engine to instruct it to use natural gas or liquid propane fuels
  • Signal sent via a supply to the pin connector in the machine interface
  • Supplies 12V or ground signal to the engine to indicate what fuel type will be used prior to engine start
  • Once the engine receives the fuel type signal, the electronic control module (ECM) will control the appropriate fuel lock-off valve and set the ignition timing and air/fuel ratio for the specified fuel type
  • Helps eliminate downtime and rework
  • Achieves higher compression ratio, resulting in lower fuel consumption
  • Built on tested and proven heavy-duty diesel base foundation
  • Maximum rated output of 78.4-79.8 hp (58.5-59.5 kW) and peak torque of 238.6 lb.-ft. (323.5 Nm) when operating on natural gas
  • Maximum rated output of 82.5-56.3 hp (61.5-56.3 kW) and peak torque of 255.6 lb.-ft. (346.5 Nm) for liquid propane operation
  • Heavy-duty block, crankshaft, cylinder head, and connecting rods all lead to durable, long life benefits
  • Includes replaceable dry cylinder liners
  • Equipped with oil pressure, coolant temperature, intake air pressure and temperature, and engine speed sensors and shutdowns to ensure safety and security
  • Features ease of maintenance and flexibility with both an engine-mounted, maintenance-free ECM and a 500-hour oil drain interval
