MANN+HUMMEL IQORON VP 25 Two-Stage Air Cleaner

MANN+HUMMEL introduced its IQORON VP 25, featuring a new type of filter element which enables the filter to be more compact in size, at bauma 2016.

Mann Hummel 573b5d71b8f86

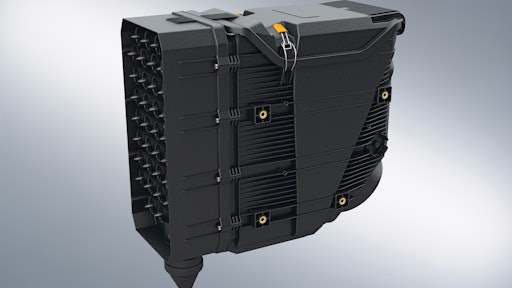

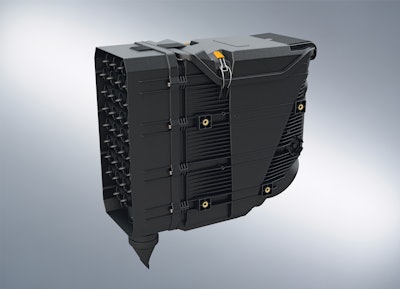

The MANN+HUMMEL IQORON VP 25 is a two-stage air cleaner which is suitable for tight installation spaces.

  • Target applications include construction and agricultural machines, cargo handling equipment or other machines which work in conditions with a heavy dust load
  • Features nominal volume flow rate of 25 m3/min
  • Includes new type of filter element which is based on VarioPleat technology and a key part of the compact design
  • Filter element enables housing concept with a new design for the clean air port, allowing air routing to the engine which is considerably shorter than competitive products
  • Filter element features high filter surface area and excellent use of installation space with a simultaneous low pressure drop and high dust holding capacity
  • Features improved efficiency of the multi-cyclone block
  • Pre-separation efficiency higher than 90% is achieved with scavenging and a slightly lower pre-separation efficiency is achieved without scavenging using a dust discharge valve
  • Can be installed both in a vertical or horizontal position
  • Robust design of housing and element offer high stability and temperature stability
  • Offers user friendly servicing concept from the side and fastening system
  • Optional extras include a number of sensors which can be fitted to the filter
  • Can be used as a single-stage air cleaner in which case the multi-cyclone block is replaced by an intake hood
