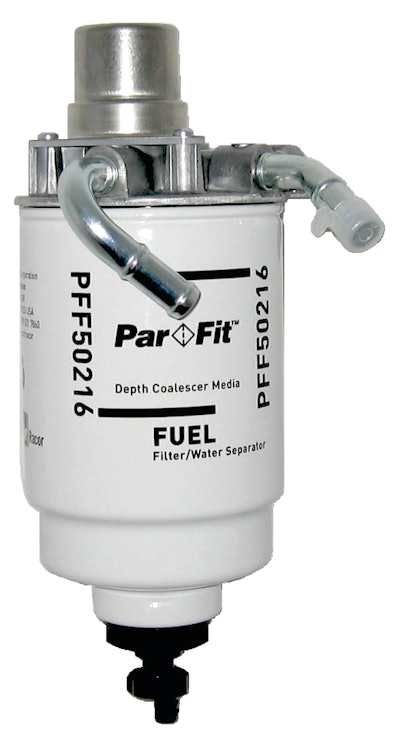

Four-Stage Fuel Filter Assembly

The Racor Division of Parker Hannifin announces the release of its Four-Stage Fuel Filter Assembly featuring a self-venting drain.

June 18, 2013

Parker Hannifin Corp., Racor Div.

Pff4245r2 03 10963607

Racor Division of Parker Hannifin Corporation presents the Four-Stage Fuel Filter Assembly.

Can be added to many applications
Includes head assembly with a priming pump and 1/2 in. fittings, a genuine Racor element, and a self-venting drain
Coalescer fuel filter system contains primary coalescing and a secondary polishing stage
Multiple layers of specialized media in coalescing stage trap dirt and extract finely dispersed water out of diesel fuel
Secondary filter strips away remaining water and polishes the fuel
Maximum Working Pressure is 30 psi (2.07 bar)
Maximum Flow Rate is 50 gal/hr (189 lph)
Features operating temperature of -50 to 255 F (-46 to 107 C)
Provides efficiency of 99.9% at 4 micron (SAE J1985 with fuel)
Emulsified water removal is >95% (SAE J1488)

Fill out the form below to request more information about Four-Stage Fuel Filter Assembly
