Shaw Development Inline Filter for DEF and AdBlue Fluid ISO-22241-1 Applications

The Inline Filter from Shaw Development features an integrated filter/bowl combination which allows contamination-free filter replacement in the field.

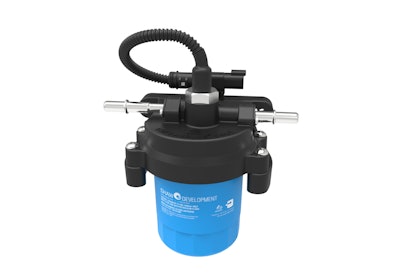

Gen2 In Line Filter Final
Shaw Logo Tl Web 5873b5b59ce5c

Shaw Development LLC introduces its patent pending Inline Filter solution for DEF and AdBlue Fluid ISO-22241-1 applications.

  • Integrated filter/bowl combination allows contamination-free filter replacement in field conditions
  • Available in heated and unheated configurations
  • For use in operating environments with ambient temperature range of -40-110 C (-40-230 F)
  • Optional electronic heating configuration provides thaw capability with ready to flow/dose within 35 minutes at -35 C (-31 F)
  • Thermal cut-off prevents possible overheat conditions
  • Steady state current draw of less than 10 amps in both 12 and 24V DC designs
  • Maximum power usage is 100W
  • Compatible with SAE J2044 fluid fittings in 3/8 in. (9.53 mm) and 5/16 in. (21.17 mm) sizes
  • Provides 98% efficiency at 40 micron particle size
  • Compact size of 6.5 x 6.75 x 4.25 in. (165.1 x 171.45 x 107.95 mm) allows convenient installation for ease of maintenance
  • Filter/bowl combination prevents contaminants from entering bowl during filter replacement operations
  • Convenient twist off/twist on feature of filter/bowl minimizes probability of contaminants falling into filter bowl from above during replacement process
  • Vibration rated per ISO 16750-3 Test 7
  • Features contamination holding capacity of 50+ grams of debris at a termination pressure of 25 mbar (0.36 psi) and 30 LPH (7.93 gph) flow rates
  • Normal operating pressure range is -500-500 mbar (-7.25-7.25 psi) with an initial pressure drop of less than 13 mbar (0.19 psi) at 30 LPH (7.93 gph)
