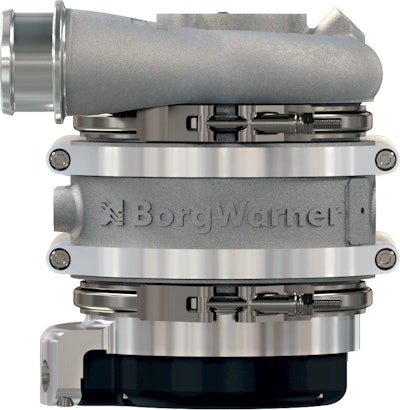

The 48V eBooster for commercial trucks uses an electric motor driving a compressor to provide supplemental boost air to the engine when the turbocharger turbine can't.
- Reduced turbo lag; better low rpm engine torque, faster time-to-torque
- 100,000 rpm maximum speed
- 2.2 pressure ratio maximum
- 10 kW continuous capability
- 23 kW intermittent capability
- Great for larger engines (>5 L)
- Permanent-magnet motor
- External power electronics
- Water cooled, no oil supply needed
- Corresponding power electronics controller also available
