ContiTech Flexible High-Temperature Hose

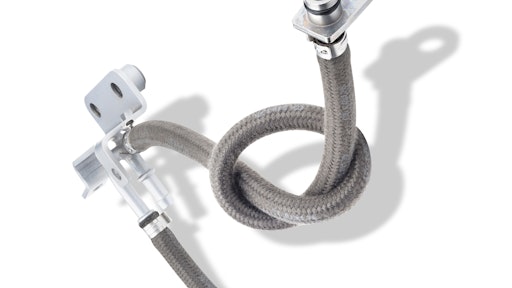

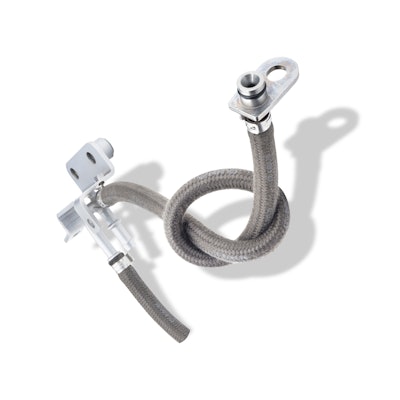

Displayed at bauma 2016, the ContiTech high-temperature hose is capable of withstanding temperatures up to 250 C (482 F) and pressures up to 15 bar.

Continental pp Conti Excelsus 57224e1ca21a9

ContiTech has developed an extremely flexible high-temperature hose with external reinforcement for truck and off-highway applications.

  • Flexibility allows use even in especially tight and complex installation situations
  • Withstands temperatures up to 250 C (482 F) depending on the particular finish
  • Supplies turbocharger with cooling water and lubricating oil, and is also used in control systems
  • Suitable for transporting air, for instance, in exhaust systems such as DPF or as a fuel return line
  • Flexibility comes from special braid made of plastic textile which is resistant to high temperatures and chemicals
  • Special braid encloses inner lining made of rubber specially adapted for the application which is highly stretchable
  • Tight bending radii is well suited to trend toward downsizing engines and associated ever tighter installation spaces
  • Lightweight design
  • Offers weight advantage over PTFE pipes enclosed in stainless-steel braid
  • Withstands operating pressures of up to 15 bar (217.56 psi)
  • Can be manufactured as molded hose or for sale by the meter
  • Kink-resistant version is available
