Eaton EC600 X-FLEX High Pressure Spiral Hose

Eaton's EC600 X-FLEX high pressure spiral hose operates at pressures up to 6,000 psi and is up to 24% more flexible, helping ease installation in tight spaces.

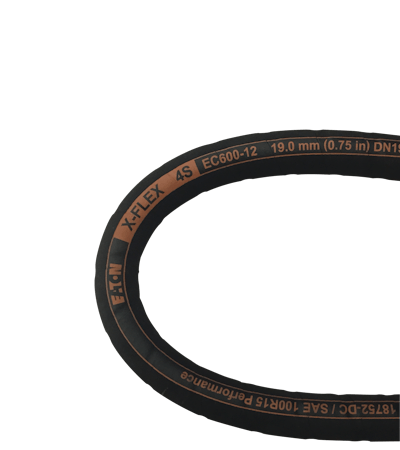

EC600 image 57fae7f746733
Logo Eaton 10933210

Power management company Eaton announces the availability of the EC600 X-FLEX high pressure spiral hose, designed for demanding applications requiring very high pressure performance in small areas.

  • Up to 24% more flexible; 50% of the Society of Automotive Engineers (SAE) 100R15 bend radius
  • Makes installation in tight spaces easier while reducing total amount of hose needed on each machine
  • Performs in demanding, high impulse applications, including construction, mining and industrial equipment
  • Features highly abrasion-resistant cover material, supporting longer hose assembly life while helping increase uptime and reduce overall operating costs
  • Withstands over one million impulse cycles
  • Offers operating pressure of 6,100 psi (420.6 bar)
  • Four and six spiral wire construction
  • Operable at temperatures from -40 C (-40 F) to 121 C (250 F)
  • No fluid leakage between hose and fitting when machine shuts down and system cools
  • Compatible with Eaton’s 4S fitting series in sizes -12 and -16 and 6S fitting series in size -20
