Parker TOUGHJacket Hydraulic Hoses

Parker's TOUGHJacket hydraulic hoses feature a specially formulated jacket which exceeds abrasion resistance and durability of super enhanced rubbers by more than 100%, and will be displayed at IFPE 2017.

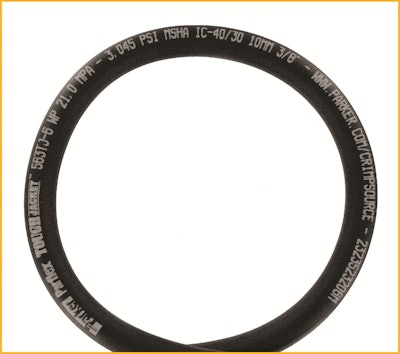

Parker 5880f8322b675
Parker Logo Big 10933187

Parker Hannifin has expanded the Parflex hydraulic hose line with the introduction of a family of TOUGHJacket hydraulic hoses.

  • Withstand the strains of large-scale, heavy-duty applications
  • Features special Parker-formulated polyurethane jackets to meet industry requirements for mega/super tough abrasion resistance
  • Exceeds abrasion resistance and durability of super enhanced rubbers by more than 100%
  • Compact and lightweight
  • Up to 40% lighter than competitors' products which means less counterweight, more payload and ability to lift farther/higher
  • Offers ultra-low length change under pressure and UV resistance
  • Small O.D. makes routing easier in cable tracks
  • Bonding capability enables customer to easily pack and manage more elements per track or eliminate the track
  • Twin or multi-line configurations are available to further reduce abrasion and/or prevent tangling
  • Four series available in sizes from 1/4 in. (6.35 mm) I.D. to 1 in. (25.4 mm) I.D.

563TJ Series

  • Offers best change in length characteristics at +/-1%
  • Well suited for boom or cable track applications where long lengths are required
  • Meets SAE 100R17, MSHA
  • Features 3,000 psi (206.8 bar) constant working pressure
  • Smaller O.D. and up to 42% lighter than comparable 100R17 hose


  • Meets SAE 100R1AT, MSHA
  • Lighter and smaller than 100R1AT with longer lengths


  • Meets SAE 100R2, MSHA
  • 1/4 in. (6.35 mm) through 1/2 in. (12.7 mm) ABS approved
  • Two-wire strength, one-wire construction for improved bend radius


  • Meets SAE 100R19, MSHA
  • 4,000 psi (275.8 bar) constant working pressure
