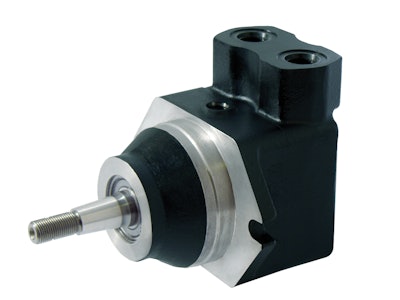

M5 Series Fan Motor solutions from Parker Hannifin Corporation are rated for continuous, reliable and efficient performance at up to 4,060 psi (280 bar) in heavy-duty mobile and off-highway applications.
- Offers high starting torque to withstand higher pressures and speeds
- Independent-speed control capability enables speed of cooling fans to precisely match operating load of vehicle for overall system efficiency and minimized wear on parts
- Includes interchangeable rotating group
- Features same motor and piping location for left or right rotation
- Double ball bearings enable high-load capacity for flexible, direct-mounting capability
- 12-vane, double-lip cartridge design provides fluid contamination resistance
- Rated for continuous operation at speeds between 3,000 and 5,000 rpm
- Heavy-duty bearings provide long-life expectancy
- Features tapered shaft for quick, easy fan installation
- Includes integrated anti-cavitation valve and proportional pressure relief valve
- Speed sensor allows pressure/speed monitoring
- Reverse valve reverses rotation and cleans radiator
- Available in 6, 10, 12, 16, 18, 23 and 25 cc/rev fixed displacements
- Applications include use in construction, material handling, transportation, forestry and agricultural machines
