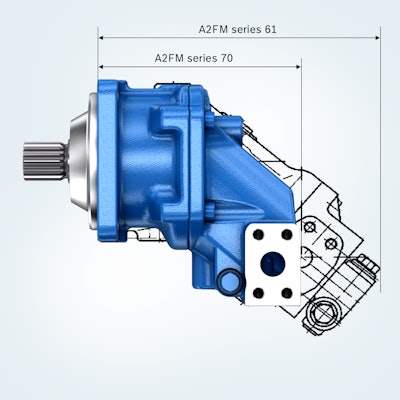

Rexroth introduces the A2FM 70 Series bent-axis hydraulic motors designed to provide high power output in a smaller installation space.
- Up to 26% shorter than Series 61 depending on size selected
- Features 40 degree bent-axis design
- Offers high power density
- Two extra pressure levels enables product line to cover pressure ranges up to 500 bar
- Smaller dimensions achieved by optimizing design of rotary unit and using an integrated flushing and boost-pressure valve
- Size improvement also reduces weight by up to 38%
- Availability of three different pressure levels suits use in cost-sensitive applications with lower pressure demands as well as for heavy-duty applications with higher pressure demands
- Three sizes with displacements of 80, 90 and 107 cm3 are available
- For speeds of up to 5,000 rpm
- Can be used in both open and closed circuits
