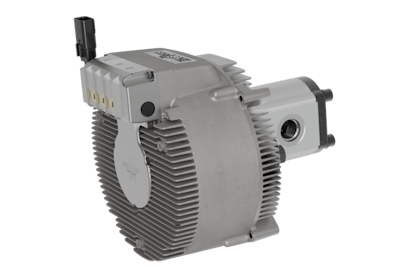

Omni Powertrain Technologies released its new electrohydraulic pump combination. The unit was developed for low voltage mobile applications and is well-suited for the needs of hybrid equipment builders facing spatial constraints. The system includes a Flo-Torq gear pump packaged with an axial flux motor and controller from Omni’s Magelec subsidiary. The overall package length of 299.7 millimeters (11.8 inches) offers equipment designers a compact form to power electrohydraulic traction and auxiliary functions.
Featuring a Magelec M17 air cooled motor with SAE B mount connection, the package weighs 17.6 kilograms (38.8 pounds). The 48-V system is rated for 46 liters per minute of continuous flow with a peak pressure rating of 250 bar.
