Eaton ESV9 Series Proportional Solenoid Cartridge Valves

Eaton's ESV9 Series proportional solenoid cartridge valves have an optimized dual spring design enabling less than 7% hysteresis.

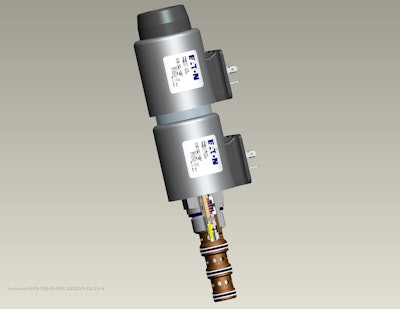

Esv9 Cartridge Proportional Valve 58d4264df014e
Logo Eaton 10933210

Power management company Eaton announces the release of its ESV9 Series of proportional solenoid cartridge valves, designed to provide superior control with optimized linearity.

  • Less than 7% hysteresis
  • Provides broad ramp rate for greater resolution and ease of use
  • Utilizes optimized dual spring design so spool is more highly controlled than single spring designs
  • Size 10 version is four-way, three-position screw-in cartridge and is available with either a type closed or float spool configuration
  • E-spool type solenoid valve has all ports closed in de-energized position, suiting moderate flow applications
  • Features rating of up to 22 lpm and up to 250 bar
  • Available with manual override
  • Can be fitted with or without IP69K compatible “L Series” Large ToughCoils
  • Available in 12V or 24V direct current coil voltages, with or without a diode
  • Various housing materials (steel or aluminum) and port sizes available
  • Can be used in place of Eaton’s industrial-rated, high-flow KDG4-V3 valve series, providing a more cost-effective, general-purpose solution
