HydraForce G3 'Drop In' Cartridge Valves

HydraForce's G3 'drop in' style cartridge valves draw less current while generating more actuator force to create faster response times.

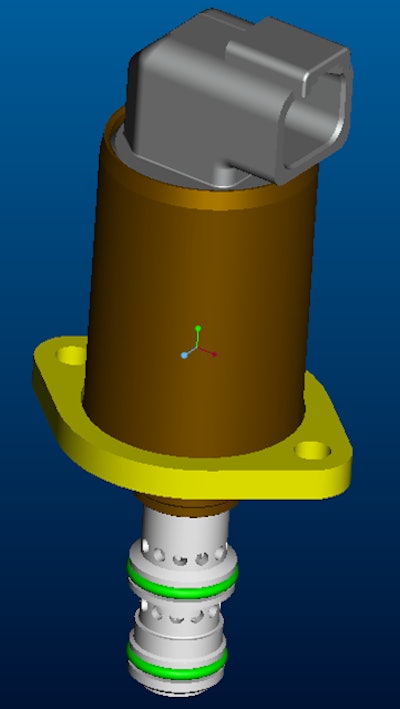

G3 ProE WithFlange 5640f06265130
Hydraforcenewtagline 10277017

HydraForce has released the G3 line of ‘drop-in’ style cartridge valves.

  • Draws less current while generating greater actuator force to create faster response in hydraulic transmission, powertrain, diesel engine, pilot control, fan drives and other hydraulic applications
  • Several styles are available – Model SV on/off solenoid valves, Model EHPR direct-acting proportional pressure reducing/relieving valves and Model TS pilot-operated proportional pressure reducing/relieving valves
  • Flow rates range from 1 to 8 gal/min (4 to 30 l/min) at operating pressures of 450 to 650 psi (20 to 45 bar), depending on the model
  • Redesigned magnetic efficiency ensures minimal amount of current is used, allowing valve to use same size coil but generate two to three times magnetic force with up to 46% less current draw
  • Higher on/off force levels provide maximum flow capacity
  • Reconfigured coil features electrical connector on top, rather than the side
  • Top-mounted connector saves space by allowing tighter spacing between multiple valves, but also provides easier access from the top to attach wiring harnesses
