Eaton ESVL9 Screw-In Proportional Solenoid Cartridge Valve

Eaton’s ESVL9 proportional solenoid cartridge valve provides a 21% manifold size reduction compared to external checks available with many other valves in the market.

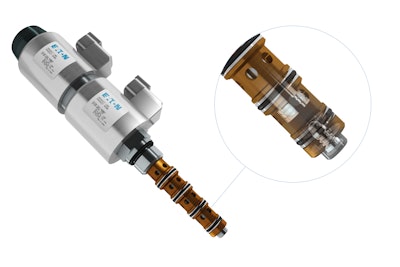

Esvl9 Cutaway Image
Logo Eaton 10933210

Power management company Eaton announces the ESVL9 screw-in cartridge valve (SiCV), a five-way, three-position proportional solenoid valve.

  • Features patent-pending, integrated load-sense check control
  • Provides 21% manifold size reduction compared to external checks available with many five-ported directional control valves on the market
  • Provides precise, compact solution for advanced proportional control as customers transition from on/off control systems
  • Size 10 valve integrates external check control within main cartridge for more efficient package
  • Allows customers to optimize flow forces and improve metering of flow to spool, providing stable, even and manageable proportional control
  • Utilizes two springs to control spool metering for increased functionality instead of one like competitive offerings
