As with so many other types of modern machines, the compact hydraulic excavators that are widely used today are not a new concept. While the physics of cable-operated excavators made the design of a compact version impossible, the idea of putting the functions of a large hydraulic excavator into a small one for the sake of portability and usefulness for smaller tasks dates to the mid-1960s, if not earlier.
One of the earliest American compact excavators is the P&H Stik-Clam. Hydraulic excavators were developed earlier in Europe than they were in the U.S., so there is a possibility that a compact European excavator may predate the Stik-Clam.

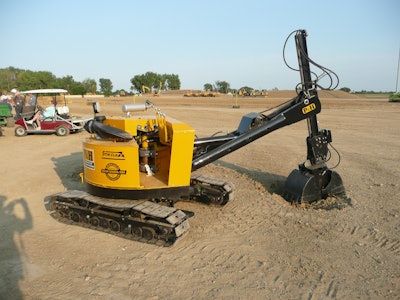

On the market in May 1965, the model S-20 Stik-Clam was, as the name suggests, a hydraulic clamshell. It weighed only 4,200 pounds and was powered by a Wisconsin gas engine rated at 24 hp.
The bucket was 17 inches wide with a capacity of 2 cubic feet, and it was mounted to a universal joint at the end of an extendable dipper stick. The universal joint allowed the bucket to rotate up to 90 degrees left or right in 15 degree increments, and it allowed the Stik-Clam to dig flush along walls and other obstructions.
It could dig to 11 feet deep and a maximum radius of 14 feet 9 inches. With the boom fully raised and the stick fully extended, it could also excavate 11 feet above ground, and the bucket could be pivoted to work above or below the tip of the boom.
P&H’s sales literature described the Stik-Clam’s innovative design as follows: “This unique tool speeds hundreds of tasks never before assigned to mechanical power . . . literally invents profit-making applications for its users. By any yardstick, there’s absolutely nothing like it.”
As radical and pioneering as it was, the Stik-Clam was evidently not a success. It would be another thirty years until compact excavators would gain wide acceptance in the U.S. marketplace.
