In the last issue, we looked at the principles behind rollers using static steel drums. This time, we’ll see how pneumatic-tired rollers are used.
A steel-drum roller compacts a swath across the width of the machine, either as a three-wheel roller with a steering drum in front and two driving drums in the back, or a tandem roller with two or three full-width drums. Its compaction force is simply a function of the machine’s weight, the area of contact with the surface (which is greater on a tandem than on a three-wheel roller, giving the latter more compaction force per ton of weight) and the material being compacted.
In contrast, a pneumatic roller compacts by the force applied by two rows of rubber tires.
Introduced in the late 1930s, the first pneumatic rollers were pulled behind tractors. They consisted of a ballast box supported on two axles, one at each end of the machine. In the early 1950s, pneumatic rollers became self-propelled, often by building them upon the powertrains of industrial wheel tractors. Tampo and Shovel Supply, for instance, often used Oliver powertrains for their rollers. While the towed rollers were usually ballasted to no more than 10-12 tons, depending on the material and working speed, self-propelled rollers weighing up to 35 tons were offered.

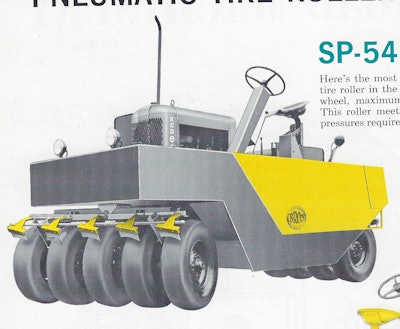

On both towed and self-propelled machines, each axle held a full row of identical smooth rubber tires, an odd number on one axle and an even number on the other, with a total of nine or 11 wheels being most common. The wheels were arranged so that those on one axle overlapped the treads of those on the other. This produced an effect of massaging and kneading the material between the tires of one axle and then the other, especially in soil. On asphalt roads, the effect was similar to heavy trucks and buses passing across the pavement.
The weight on each tire caused it to penetrate the surface; with the tires so close together and one axle overlapping the other, the areas of penetration and compaction merged across the width of each axle. The result was high compaction pressure per square inch of surface contact. The tires tended to leave tracks in the material being compacted, and so finish rolling with a tandem roller was usually necessary when working on asphalt.
An offshoot of the towed pneumatic roller, the proofroller, was developed in the mid-1940s. A proofroller rode on a single axle with four oversized, high-pressure flotation tires, and it was designed to provide deep-lift compaction of earth fills. The first proofrollers weighed 20 or 30 tons ballasted, but shortly 50 tons became the standard with at least one weighing a whopping 200 tons. Like its smaller cousins, it also tested the material’s load-bearing strength, to ensure compaction was up to spec.
