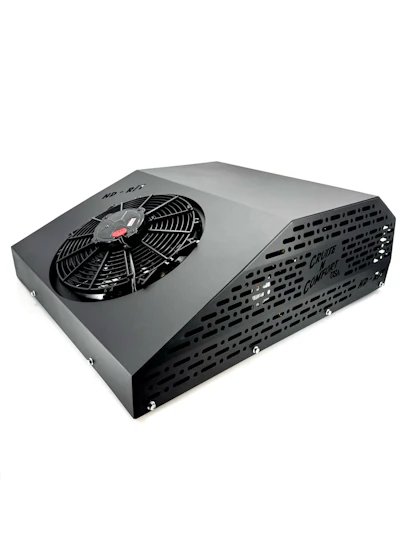

The Cruise N Comfort HD R/T rooftop air conditioning system represents more than 15 years of engineering experience developing DC-powered climate-control systems for demanding commercial, marine, military, and specialty vehicle applications. Rather than designing another rooftop air conditioner from scratch, Cruise N Comfort combined the company's proven HD Series platform, continuously manufactured, refined, and field-tested since 2010, with a purpose-built heavy-duty rooftop architecture engineered for severe-duty mobile environments.
The HD R/T was designed to solve a problem found across semi trucks, off-highway construction equipment, vocational vehicles, service trucks, command vehicles, offshore patrol boats, work boats, military and law-enforcement vessels, and other specialty equipment: conventional rooftop air conditioners are often not engineered for the vibration, dust, salt air, moisture, extreme temperatures, uneven operating angles, long duty cycles, and limited electrical power encountered in these applications.
Instead of asking how to build another rooftop air conditioner, Cruise N Comfort approached the project around five core engineering principles.
1. Heavy-Duty Construction Instead of Consumer Construction
The HD R/T was not developed as a traditional RV rooftop air conditioner with a molded plastic housing. It was engineered as a heavy-duty DC-powered rooftop climate-control system for commercial, industrial, marine, off-highway, and specialty equipment applications.
In many of these environments, conventional mass-produced rooftop air conditioners originally designed for recreational vehicles simply are not engineered for the vibration, dust, salt air, moisture, extreme temperatures, long operating hours, and physical demands encountered in commercial, marine, military, and off-highway service.
The HD R/T is built around a heavy-duty all-metal chassis and is available in either stainless steel or lightweight powder-coated aluminum construction. The aluminum version weighs approximately 65 pounds while maintaining the strength needed for harsh-duty applications. For OEM manufacturers, fleets, and other customers ordering in quantity, custom colors and customer logos are also available.
2. Engineered Airflow and Heat Dissipation
One of the HD R/T's most important innovations is its airflow-focused chassis design. The chassis, base plate, and outer cover are strategically perforated to reduce weight while greatly increasing airflow through the condenser and around the compressor.
Rather than trapping heat inside the rooftop enclosure, the structure itself becomes part of the cooling system. While the vehicle or vessel is moving, outside air passes through the perforated chassis and cover, helping feed the double-core condenser while removing heat from the compressor compartment. This airflow strategy allows the system to continue operating efficiently in extremely high ambient temperatures, including Desert Southwest summer conditions.
The HD R/T also utilizes a double-core condenser to improve heat rejection and operating efficiency, helping maintain cooling performance where conventional rooftop systems begin losing capacity.
3. Proven Modular Engineering and Serviceability
The HD R/T is based on the same proven core components Cruise N Comfort has manufactured, refined, and field-tested throughout its HD Series since 2010.
The compressor, electronics, controls, blowers, fans, and many other major components are shared across multiple Cruise N Comfort product families rather than being unique to a single model. The HD R/T contains very few model-specific service parts, allowing one common inventory of core components to support multiple product lines.
This common-platform approach improves long-term serviceability and replacement-parts availability. Fleet operators, OEMs, military users, commercial customers, and equipment owners do not have to wait for a one-off component designed for only one product. In many cases, replacement parts can be shipped the same day or overnight when needed, reducing downtime and helping keep vehicles, vessels, and equipment operating.
Every improvement made to a core component benefits multiple product families, allowing Cruise N Comfort to continually refine a proven platform instead of maintaining a large collection of one-off proprietary parts.
Innovation is not always about creating more parts. Sometimes innovation means reducing complexity while increasing reliability.
4. High Cooling Performance with Lower Electrical Demand
At the heart of the HD R/T is a variable-speed brushless DC compressor built for Cruise N Comfort in the United States.
Rather than relying only on simple on-and-off operation, the compressor continuously adjusts its speed to match cooling demand. The result is lower current consumption, improved efficiency, quieter operation, and longer battery runtime.
The HD R/T is available in 12-volt, 24-volt, and 48-volt configurations and, in many comparable applications, operates at roughly half the current consumption of many conventional rooftop air conditioning systems.
The system fits a standard 14-inch by 14-inch roof opening while supporting idle-reduction strategies, auxiliary battery systems, lithium power systems, and off-grid operation.
Another important advantage is its ability to operate at mounting angles up to approximately 30 degrees. Many conventional rooftop air conditioners are limited to approximately 5 to 10 degrees, making the HD R/T especially valuable for off-highway equipment, marine vessels, and specialty vehicles operating on uneven terrain.
Current Specifications include:
- 12S: 10-15 VDC | 32-38 A | 7,000 BTU
- 12L: 10-15 VDC | 38-52 A | 10,000 BTU
- 24S: 20-31 VDC | 16-19 A | 8,000 BTU
- 24L: 20-31 VDC | 20-30 A | 11,000 BTU
- 48L: 40-58 VDC | 8-16 A | 12,000 BTU
5. Flexible Controls and Digital Integration
Every customer operates differently, so every HD R/T can be configured differently.
Customers working in severe-duty environments can choose a rugged heavy-duty manual controller designed for simplicity and reliability.
Fleet operators and remote users can select Wi-Fi over internet thermostats that provide app-based control and monitoring from virtually anywhere.
OEMs, marine builders, military users, and specialty equipment manufacturers can integrate the HD R/T directly into touchscreen digital switching systems using Cruise N Comfort's CNC-I interface, allowing operation through Garmin, CZone, and other compatible digital switching platforms.
This flexibility allows the same rooftop platform to serve everything from a construction machine working in the desert to an offshore patrol vessel operating hundreds of miles from shore.
Benefits and Intended Results
The HD R/T was designed to:
- Provide DC-powered cooling without requiring engine idle
- Reduce fuel use and unnecessary engine hours
- Lower electrical demand compared with many conventional rooftop systems
- Extend usable runtime from battery-based power systems
- Improve operator comfort in hot, remote, and harsh environments
- Provide stainless steel or lightweight powder-coated aluminum construction
- Improve condenser and compressor airflow in extreme heat
- Increase heat rejection through a double-core condenser
- Fit a standard 14-inch by 14-inch rooftop opening
- Operate at mounting angles up to approximately 30 degrees
- Support manual, Wi-Fi, and touchscreen digital control options
- Improve serviceability through parts commonality
- Reduce downtime through faster replacement-parts availability
- Support land, marine, military, commercial, off-highway, and specialty applications
What Makes the HD R/T Unique
What makes the HD R/T unique is not one isolated component. It is the way the entire system was engineered around heavy-duty use.
Every major design decision behind the HD R/T was made to improve one or more of four things: durability, efficiency, serviceability, or customer support. From the all-metal chassis and engineered airflow to the modular parts strategy, flexible control options, and direct factory support, every feature serves a practical purpose in helping customers keep their vehicles, vessels, and equipment operating in demanding real-world environments.
The combination of an all-metal chassis, perforated airflow-focused construction, double-core condenser, variable-speed brushless DC compressor, direct DC operation, lower current consumption, wide operating-angle capability, modular service parts, flexible controls, digital switching integration, and direct U.S.-based customer support creates a rooftop air conditioning system purpose-built for environments where conventional rooftop products may not be adequate.
The HD R/T is designed and assembled in-house by Cruise N Comfort in the United States using domestic and foreign components. Customers receive support from the same people who engineer, assemble, test, and service the product.
The result is more than a rooftop air conditioner. It is a purpose-built heavy-duty mobile climate-control platform engineered to reduce downtime, improve efficiency, simplify service, and deliver dependable cooling wherever the job takes it.
