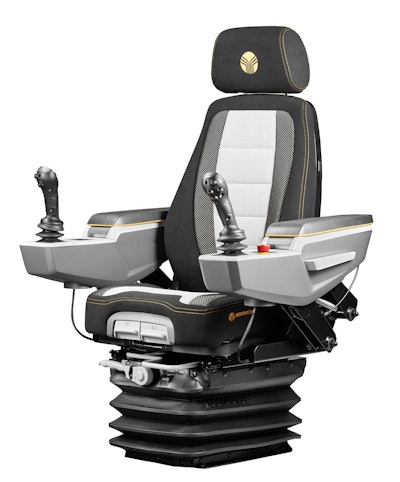

Grammer MSG 285 Seat Suspension

The Grammer MSG 285 seat suspension has a high-strength mechanical scissors-type design with a fore/aft isolator for improved operator comfort, and was introduced at bauma 2016.

Grammer 573b57f75fec9
Grammerinc 10055488

Grammer has introduced the MSG 285 suspension which is integrated in a user-optimized seat for OEMs.

  • For drivers of excavators, wheel loaders, rollers and backhoes
  • Delivers a more comfortable, back-friendly ride when operating vehicles under rough conditions
  • Adds improved height and weight adjustment, as well as a fore/aft isolator to high-strength mechanical scissors-type suspension design
  • Can be combined with S 700 upper seat section, which is available in a number of versions, to assemble a complete modular seat
  • Corresponds to ISO 7096:2000 EM 3 to EM 9
  • Includes easy-to-use combined weight and height adjustment mechanism
  • Seat can be set for weights from 50-150 kg/110.23-330.69 lbs. (operator plus additional equipment)
