APEM XF Series Finger Operated Joystick Controller

APEM's XF Series is available with up to three proportional axis and two momentary pushbuttons.

July 9, 2019
APEM
Xf 55
Logo Apem 10933224

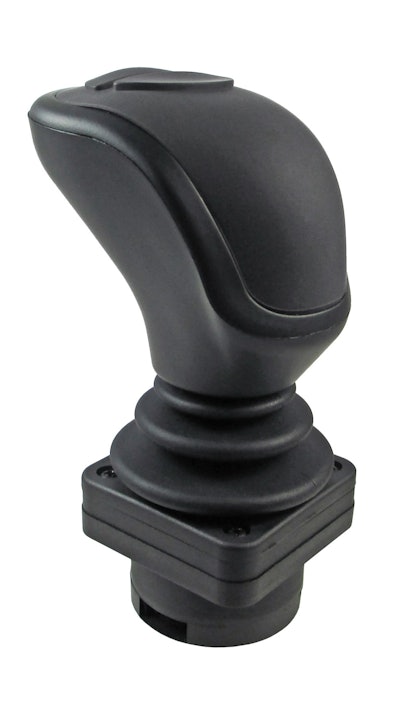

APEM Inc. announces the XF Series, a ruggedized finger operated joystick controller specifically engineered for vehicle applications.

  • Designed per ISO 25197 standard
  • Rated to withstand 80 lbs.-ft. (108.5 Nm) pull force across X/Y axis and over 5 Nm (3.7 ft.-lbs.) torque in Z axis
  • Utilizes contactless Hall effect sensing to provide long life proportional control for over five million lifecycles
  • Available with up to three proportional axis and two momentary pushbuttons
  • Carries IP67 above panel sealing rating
  • Shallow mounting of 26 mm (1 in.) below panel
  • Requires minimal console space
  • Suits vehicle applications where ergonomics and operator comfort are paramount
  • Can be specified with CANbus J1939, CANbus J1939-71, or CANopen outputs
  • Accommodates supply voltage ranging from 6-35V DC
  • Operates between -40 and 85 C (-40-185 F)
  • Qualified per EMC Standards, EN61000-6-3:200, EN61000-4-3 Extended and ESD: EN61000-4-2 Extended
