Grayhill 10.4 Inch Display

Grayhill's 10.4 Inch Display features a scratch-resistant, anti-glare cover glass with optional touchscreen capabilities.

March 20, 2018
Grayhill Inc.

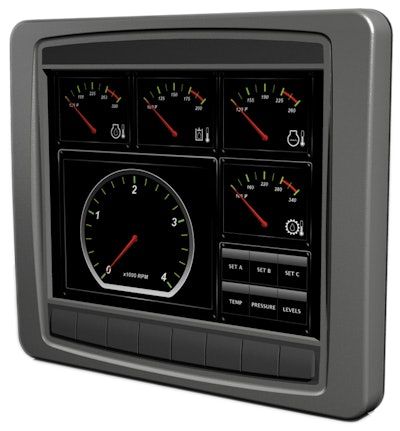

10inch Render
Grayhill Lockup Main Horizontal Black + Rgb 199 (1)

Grayhill Inc. introduces the refreshed 10.4 Inch Display for vehicles.

  • Suited for gauges, diagnostics, cameras, guidance and other vehicle functions in construction, mining, turf care, specialty and agriculture markets
  • Features scratch-resistant, anti-glare cover glass with optional touchscreen capabilities
  • Measures 10.4 in. (26.4 cm)
  • Redesigned with increased processing capabilities
  • Optically bonded display for superior mechanical and sunlight readability
  • Provides wide viewing angl
  • Includes four video inputs
  • Capable of displaying three simultaneous cameras
  • Seven soft keys with optically bonded multi-touch PCAP Touchscreen variant available
  • Creation and integration of apps is easy with VUI Builder (J1939) and Linux Qt (J1939 and CANopen)
  • Development kit is offered to provide hardware and software required to set up a programmer’s workstation for use with chosen development environment
  • Kit includes display itself, development stand, interface PCB, and interface cables
  • Sealed to IP67
  • Bezel or VESA MIS-D standard mount
  • XGA resolution (1,024 X 768) 16-Bit color TFT, LED backlight, 600 NITS backlight intensity
  • 800 MHZ i.MX6 Dual Core Processor with 512MB DDR3 and 4GB e.MMC
  • Linux Operating System
  • Three second boot time for apps developed with VUI builder
