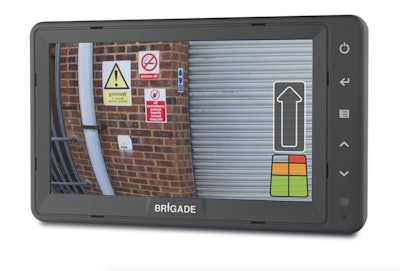

Working in conjunction with a camera monitor system and up to two ultrasonic detection systems, Brigade's on-screen display module warns drivers of obstacles close to the vehicle.
- Ultrasonic proximity sensors minimize both vehicle damage and collisions with pedestrians, cyclists, or objects
- Well suited for road-going commercial vehicles operating in confined spaces or maneuvering at low speed
- Overlays three-stage audible and visual ultrasonic data onto camera image on vehicle’s monitor
- Reduces driver stress and distractions as all information is in one view
- Vehicle icon and detection data from up to two ultrasonic obstacle detection systems are overlaid onto monitor
- Compatible with Sidescan, Frontscan and Backscan, and Brigade camera monitor systems
- UDS overlay will appear on black background if no cameras installed
- Graphics can be overlaid left or right on monitor
- Operating temperature is - -30-70 C (22-158 F)
- IP30 rating
- Measures 74 W x 118 D x 28 H mm (2.9 x 4.6 x 1.1 in.)
- CE marked and EMC approved: E
- FCC and IC approved
- Power consumption of 1.7W
- Current is 140mA
