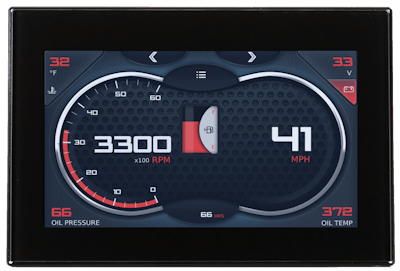

Enovation Controls Murphy PowerView 500 Glass-Front Display

The Murphy PowerView 500 features an optically bonded display with projected capacitive (PCAP) touchscreen.

March 6, 2020

Enovation Controls announces the release of the Murphy PowerView 500 (PV500), the compact 5-in. (12.7 cm) glass-front display in the PowerView family of high-performance displays.

Delivers bright, vivid graphics with a high-speed processor
Optically bonded display with projected capacitive (PCAP) touchscreen allows a user to operate their machine and display with gloves as well as durability in harsh operating environments
Provides all monitoring and application control from a compact unit
Allows seamless integration for OEMs and system integrators
Powered by a 1GHz high-speed processor
Optimized to boot up quickly and can seamlessly run intensive applications, graphics, transitions and video
Features 800 x 480 pixels with 24-bit color so on-screen graphics are crisp and bright
Ample storage is available with 8GB of flash memory for data logging, graphics, videos and more
Four standard molded-in Deutsch 6-pin DT series connectors, one of which is dedicated for a mating USB connector for programming or exporting data
Built-in mount for mounting stand-alone, flush, RAM-mounted or inside a panel
Visible in full sunlight with optically bonded, anti-glare screen
Supports J1939 and proprietary messaging with two CAN ports
Real-time clock with battery backup
Complies to CE mark per 2014/30/EU (EN 61326-1 & EN 60945)
Complies to ISO 13766
