Configurable Touchscreen Display

The new OEM configurable touchscreen display is a rugged display that allows to design and implement their own screen graphics using open-source development tools.

March 28, 2022
Delta Systems Inc.

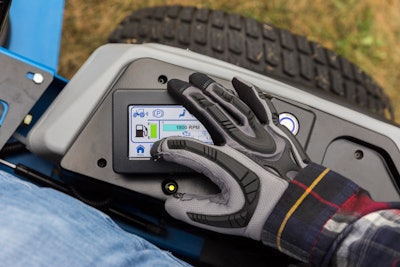

Delta Advanced Touch Screen Display

Delta Systems has added a new touchscreen display model to its portfolio. The new OEM configurable touchscreen display is a rugged display that allows to design and implement their own screen graphics using open-source development tools. Delta Systems developed this graphic display.

Computing and Storage

Processor: 600 MHz ARM-based; memory management unit (MMU); advanced security functions: secure boot capability, tamper detectionDelta Systems Logo and secure key storage

Storage: 8-MB QSPI FLASH, 256B EEPROM, up to 4-GB single-level cell (SLC) NAND FLASH for operating system and application

RAM: 128 MB DDR2-SDRAM

Graphics engine: 2D graphics processor unit (GPU)

Display and HMI

  • 4.3-inch TFT LCD
  • Capacitive touchscreen
  • 24-bit RGB color interface
  • 480x272 resolution
  • Glass w/anti-glare
  • Optically bonded
  • 1,000 cd/m2 luminance
  • Dimming control

Interfaces and Enclosure

  • Optional USB host or device/USB OTG
  • Operating temp: -20° to 70°C
  • Operating voltage: 9.0 to 90 VDC
  • Ingress protection: IP67, with mating connector
  • Snap-in, panel-mount
